Tool length sensors

Description:

Tool length sensors are used to determine the tool length in the Z direction. The two sensors WLS1 and WLS2 consist of a high-quality, precision-manufactured aluminum housing, a low-wear stainless steel probe and a built-in microswitch.

An ingenious spring mechanism is integrated in the WLS2 which provides a further approx. 7 mm of spring travel in addition to the 1 mm for actuating the switch. This safety travel protects the tool and the switch itself from destruction, for example if the ramp is too large.

Description: Tool length sensors are used to...

Product finder

Standard Item name from A to Z Item name from Z to A Price in ascending order Price in descending order Weight SKU Release date Newest first GTIN Bestsellers Reviews
Show all
Items 1 - 2 of 2

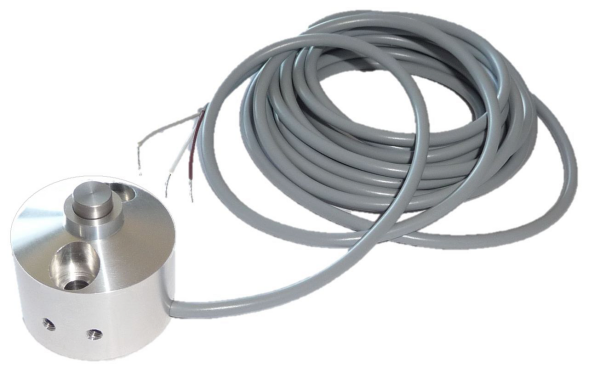

0042-001-0001 WLS 1 Tool length sensor
Data sheet

spring mounted touch surface

To the product

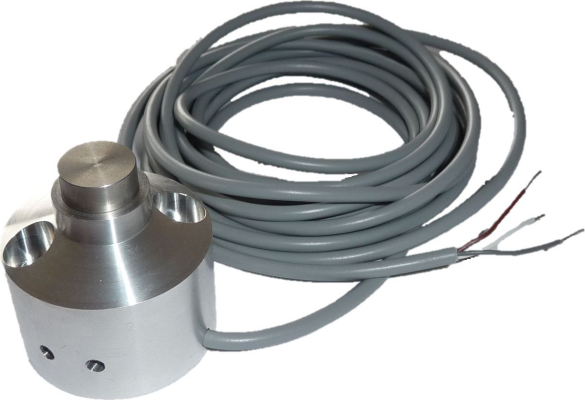

0042-001-0002 WLS 2 Tool length sensor
Data sheet

spring mounted touch surface and extended spring travel

To the product
Items 1 - 2 of 2
