Gravuranschlag

The engraving stop is the cost-effective solution to a fundamental problem: Even the slightest deviations in the thickness of the material to be engraved appear enlarged as fluctuations in the line width. The engraving stop (or depth regulator) compensates for such fluctuations safely and precisely and ensures a clean result with consistent line thickness.

The engraving stop is the cost-effective...

Product finder

Standard Item name from A to Z Item name from Z to A Price in ascending order Price in descending order Weight SKU Release date Newest first GTIN Bestsellers Reviews
Show all
Items 1 - 3 of 3

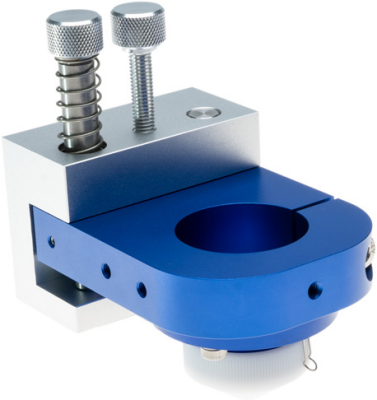

0042-002-0011 FES43 Floating Engraving Stop
Data sheet

Characteristics:

  • Floating Engraving Stop with moving spindle holder
  • Aluminium, high-quality anodised
  • Several rear fastening options for easy mounting on existing machines
  • Suitable for clamping neck Ø 43 mm
  • Adjusting Screw to regulate the spring force
  • Adjusting Screw to limit the spring travel
  • Adjustable POM down holder with good gliding characteristics
To the product

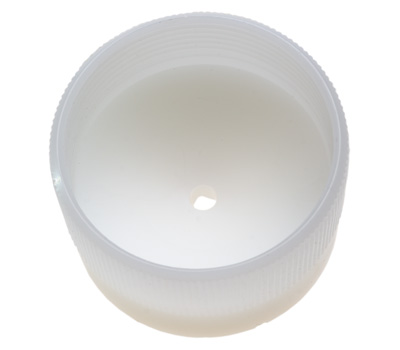

0042-002-0013 Cap, flat for Floating Engraving Stop FES43
Data sheet

POM sliding cap with big contact surface for FES43

To the product

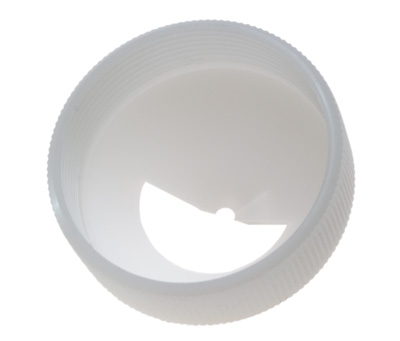

0042-002-0012 Cap tapered, Floating Engraving Stop FES43
Data sheet

POM sliding cap with small contact surface for FES43

To the product
